Overview and applications

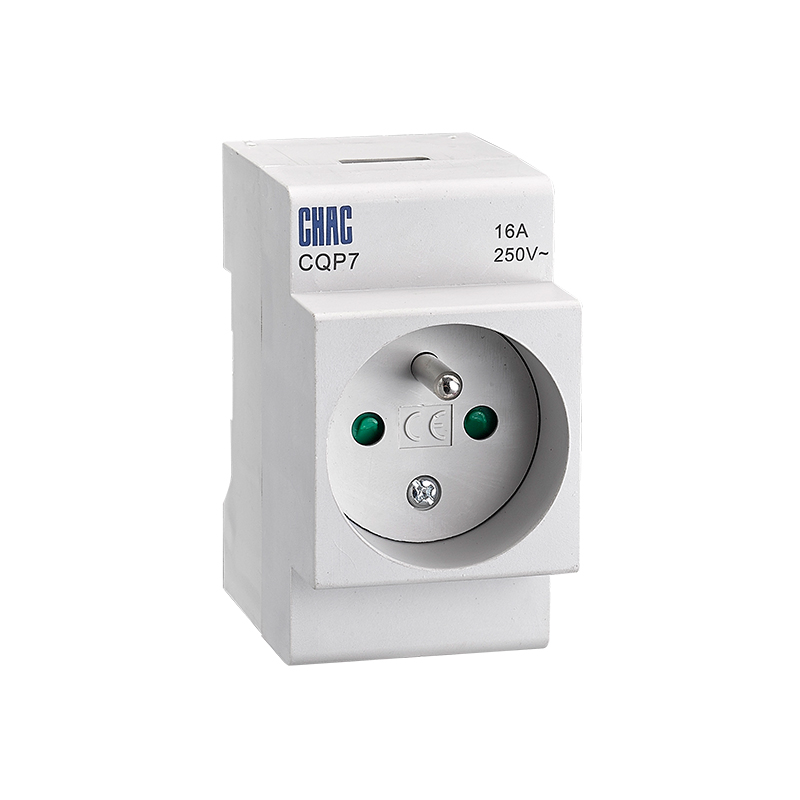

CQP7 (CAP7) Modular Socket can be used together with our other modular products for connection of mobile devices, tools or electric and electronic non-modular equipments directly inside civil and industrial switchboards.Building on this core capability, the CQP7 Series features a user-friendly interchangeable design allowing effortless module replacement or upgrade without complex rewiring or soldering, significantly reducing equipment downtime during servicing. Its compact footprint is engineered for seamless integration within densely populated switchboard panels, optimizing valuable space. Engineered contacts provide reliable, low-resistance connections essential for consistent signal integrity and power delivery across demanding industrial environments and critical infrastructure applications. Robust construction ensures dependable performance meeting rigorous standards for vibration resistance, temperature fluctuations, and long-term durability. Supporting diverse applications from industrial automation controls and building management systems to telecom infrastructure and test equipment connectivity, the CQP7 delivers versatile, secure interfacing. Compliant with relevant industry specifications and RoHS directives, it offers a future-proofed solution for modern equipment interfacing needs.

Technical data

Conductor requirements and cross sections

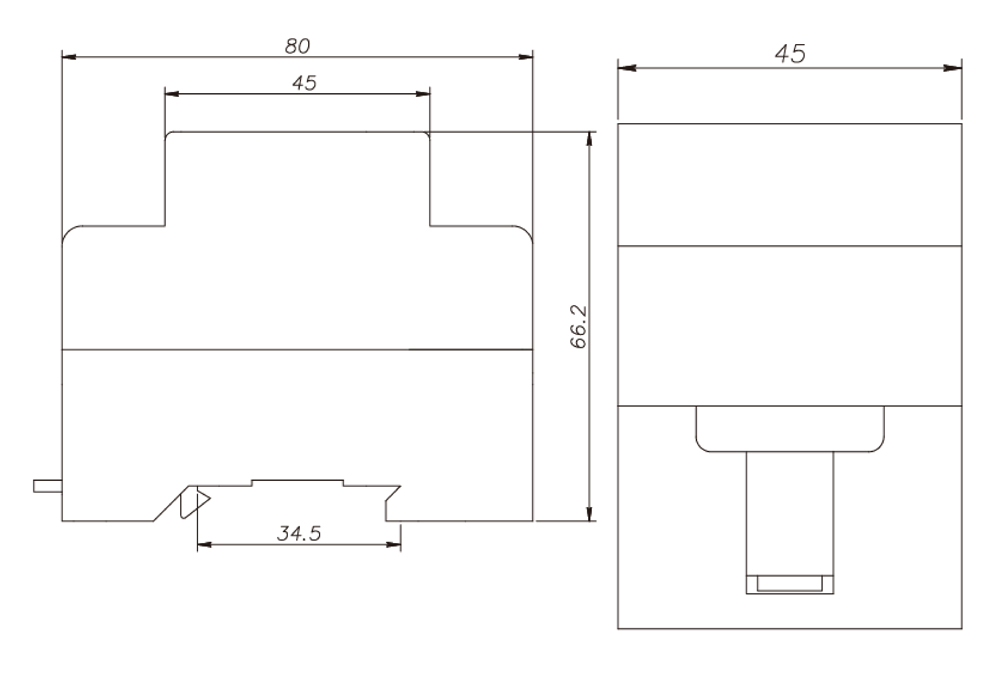

Dimensions(unit:mm)

Order Specifications

1.When ordering sockets, specify the following points：

A) product model, such as CQP7;

B)order quantity,such as 100 pcs

2.Purchase order template

CQP7 100pcs
